D-Plate 100
Standard hardfacing overlay sheets ready for structural installation, cutting, and welding into chutes and liners
Product Overview
• The hardfacing wear plate.

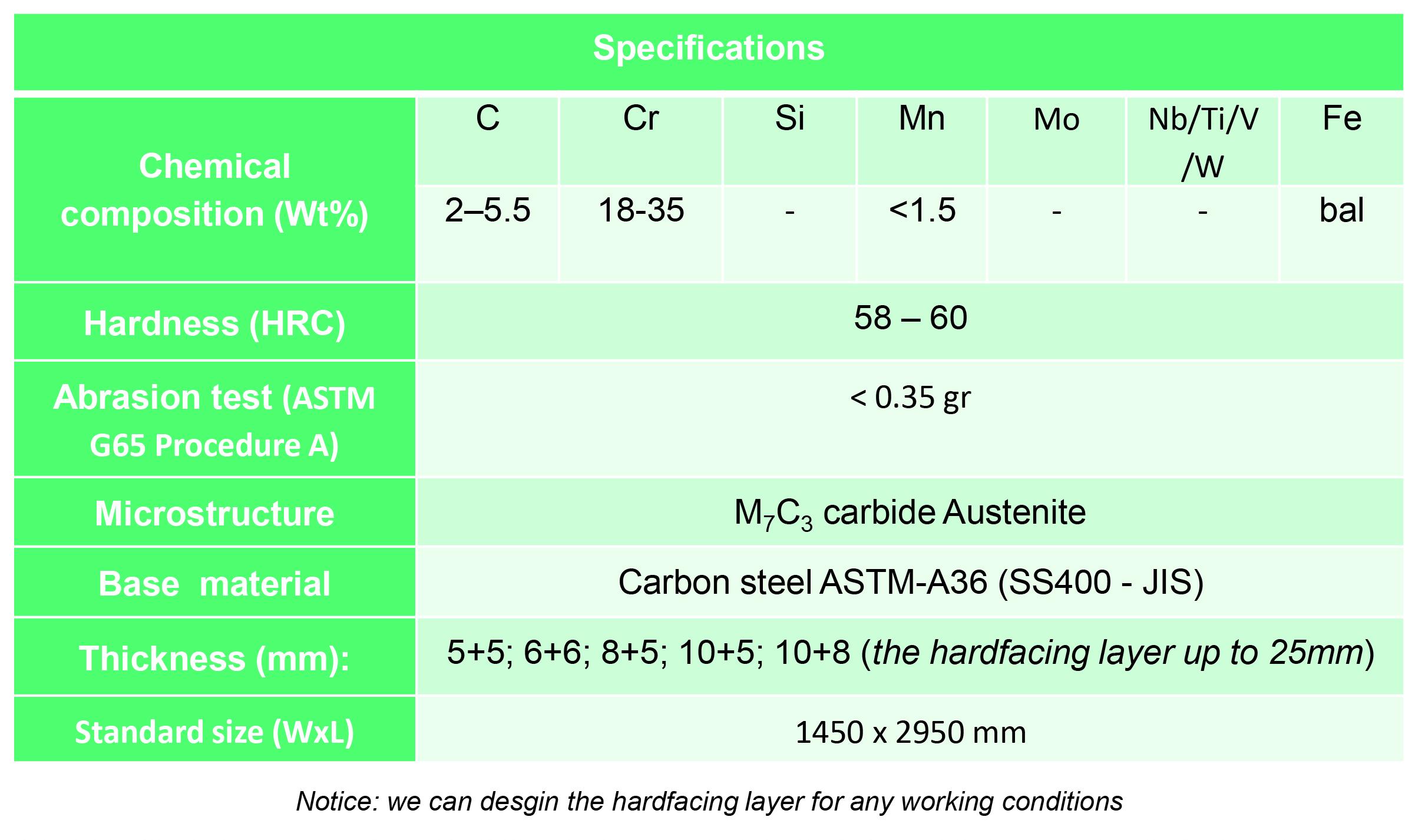

• The plate is composed of Mild steel (SS400) and a wear resistant surface applied by Powder Overlay Process (POP).

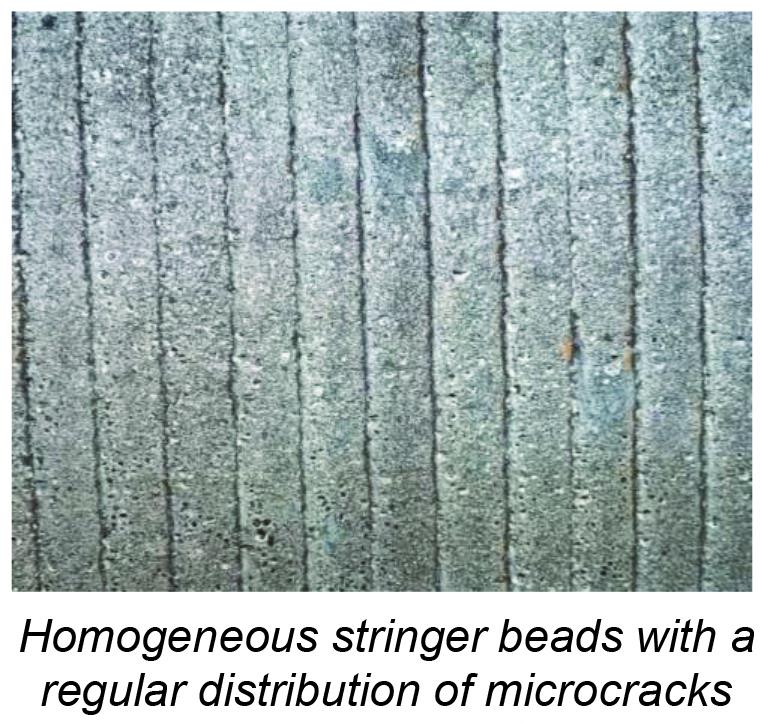

• The deposit has been realized by means of stringer beads to give low dilution and a homogeneous structure with a fine crack pattern providing a uniform wear surface, especially adapted to abrasive wear.
• High volume of chromium carbides evenly distributed throughout the thickness of the deposit.
• Keeps its outstanding properties up to approximately 350°C.

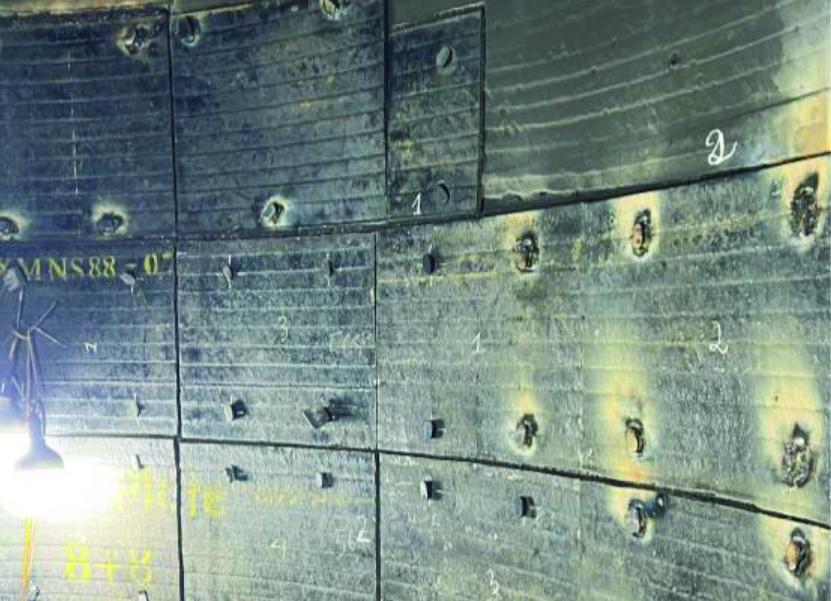

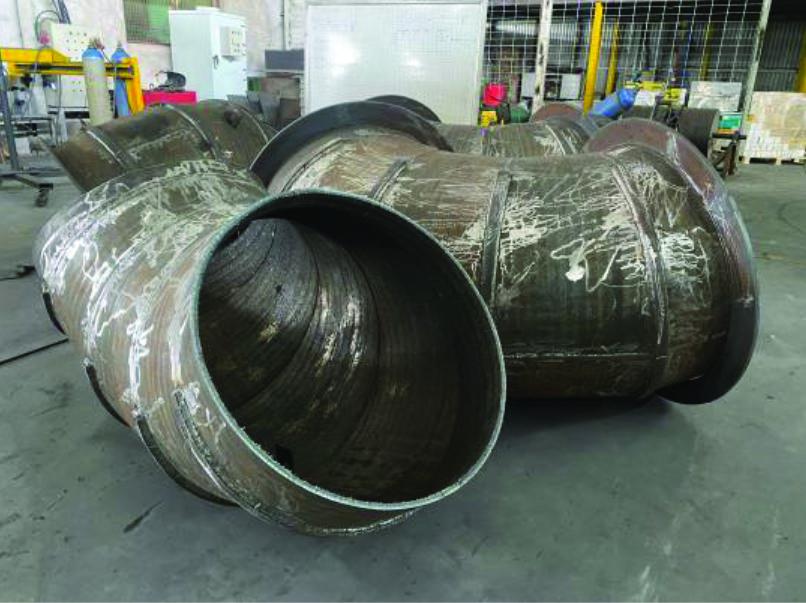

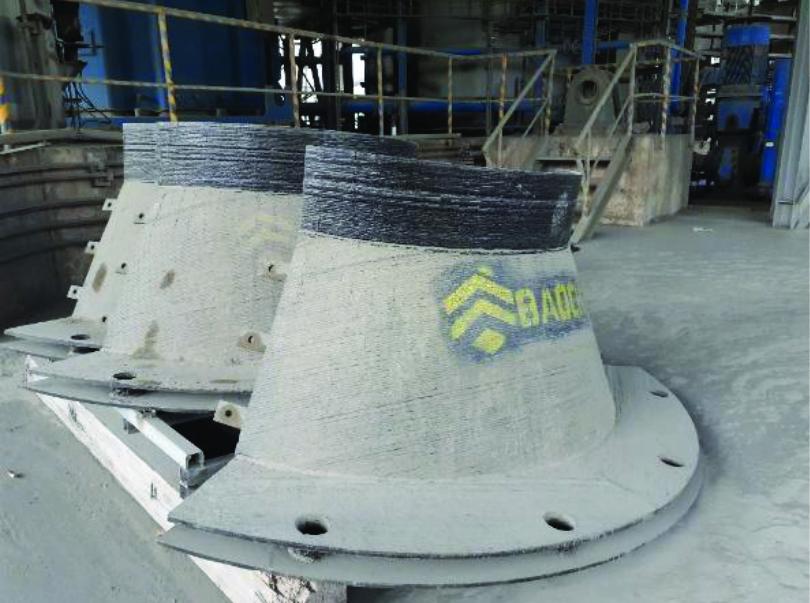

Applications & Usage Examples
D-Plate can be used for various industries for multiple applications per below:
| ▪ Guide Vane ▪ Shell Liner ▪ Cover of Roller ▪ Amour Ring ▪ Dusting Pipe ▪ Outlet Duct ▪ Drive Chute | ▪ Fan Blade ▪ Nozzle Ring ▪ Cover of Roller Hub ▪ Impact Slide Ring ▪ Feeding Chute ▪ Receiving Hopper ▪ Screen Plate |
|---|
